Properties
Impact Resistance
Vectran™ LCP fiber is unique in regards to other materials in that it provides a balance of properties rarely found in synthetic fibers: minimal moisture retention, thermal stability, and excellent impact resistance. Using the Dynatup Impact Test, Vectran™ performed far better than competitive materials.
Impact resistance comparison of high-performance fabrics
| Impact Energy (inch lbs.) | Vectran™ | Aramid |
|---|---|---|
| 25 | No | No |
| 30 | No | No |
| 50 | No | Penetration |
| 75 | No | Penetration |
| 100 | No | Penetration |
| 125 | Penetration | Penetration |
Vibration damping
Vectran™ provides excellent damping properties, making it ideal for sporting goods and audio component applications.

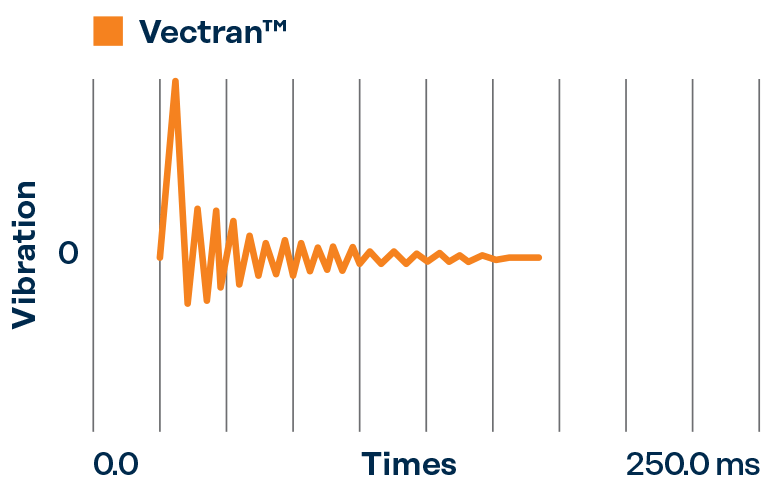

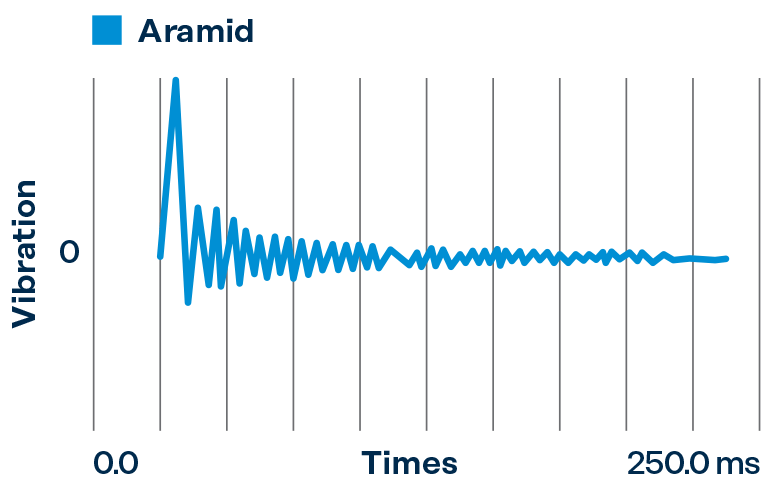

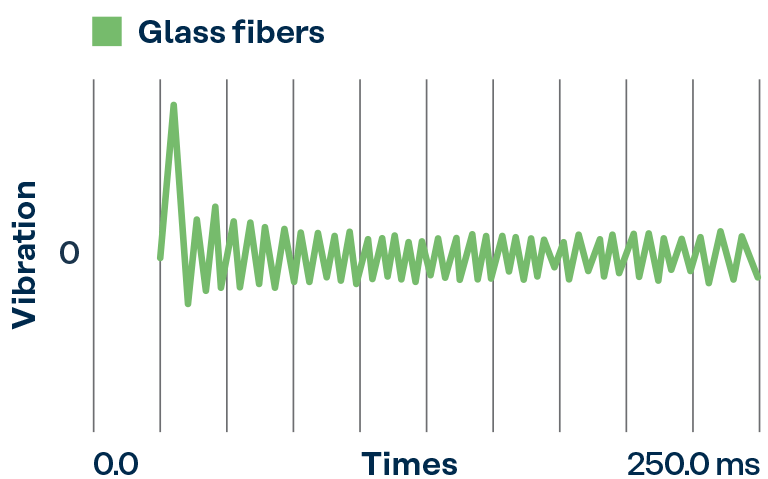

Periodic damping of fiber reinforced composite
(Matrix resin: epoxy)
